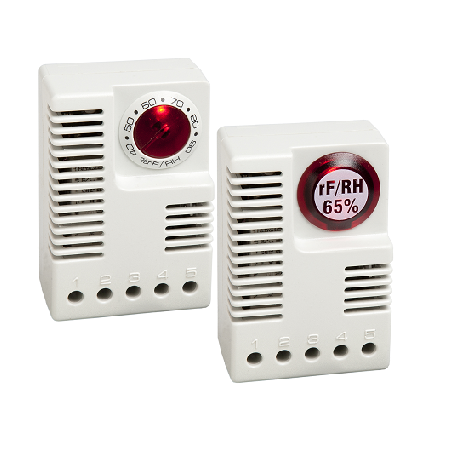

The EFR 012 electronic hygrostat senses the relative humidity in an enclosure and turns on a heater at the set point, helping prevent the formation of condensation in the enclosure. The integrated LED is lit when the connected device is in operation.
Categories: Enclosure Products, Stego | Thermal Management, Regulating
|
Switching difference (Temperature) |
: 5 %RH (± 3 %RH tolerance) at +77 °F (+25 °C) and 50 %RH |
|
Max. reaction time |
: Approx. 5 sec |
|
Contact type |
: SPDT / change-over contact (relay) |
|
Dimensions |
: 2.54 x 1.65 x 1.5″ (64.5 x 42 x 38 mm) |
|
Connection |
: 5-pole terminal, clamping torque 0.5 Nm max.: solid/stranded1 wire – AWG 14 max. (2.5 mm2) |
|
Housing |
: Plastic, UL 94V-0, grey (bicolor) |
|
Storage temperature |
: +32 to +140 °F (0 to +60 °C) / -4 to +158 °F (-20 to +70 °C) |
|
Protection type/Protection class |
: IP20 |
