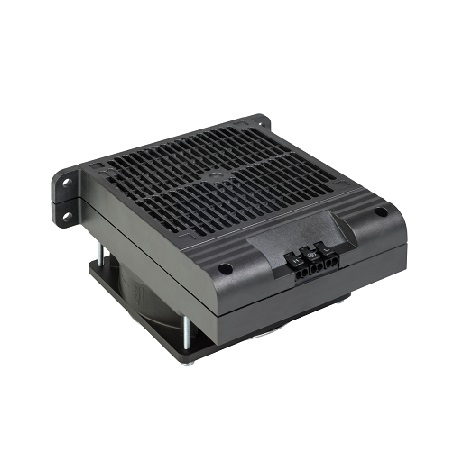

The compact high-performance fan heater prevents the formation of condensation and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The heater may only be operated together with a fan, but is also available without an axial fan (for self-installation). The fan heaters are available with two different mounting systems – either mounting by screws or with a new and unique twist clip mounting system. These options allow for quick and easy installation of the fan heater.
Categories: Enclosure Products, Stego | Thermal Management, Heating
|
Heating element |
: High performance cartridge |
|
Housing |
: Plastic, UL 94V-0, black |
|
Axial fan, ball bearing |
: Service life 50,000 h at +77 °F (+25 °C) |
|
Connection |
: 2-pole dual pressure clamp for solid wire AWG 14 max. (2.5 mm²), stranded wire (with wire end ferrule) AWG 16 max. (1.5 mm²) |
|
Operating/Storage Temperature |
UL: +14 to +104 °F (-10 to +40 °C), VDE: +14 to +122 °F (-10 to +50 °C) |
|
Protection type/Protection class |
: Heater: II (double insulated), fan: I (grounded) / IP20 |
