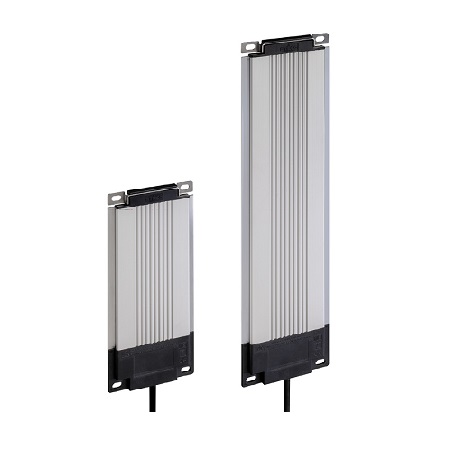

The Flat Heater CP 061 is used to provide evenly distributed temperature within enclosures and cabinets with electric/electronic components. Its ultra-thin design makes it particularly suitable for high-density applications in which standard enclosure heaters are often too big. Depending on the application, the Flat Heater can be used as a convection heater or as a contact heater. When used as a contact heater it offers Thermo conductive contact to a component or a cabinet wall. Additionally, a mounting system specially designed for the CP 061 allows for the compensation of an expansion of the heater body as a result of the heating-up when in operation. Operated as a convection heater, the slim heater CP 061 warms up the ambient air within a cabinet. The CP 061 is designed for continuous operation.
Categories: Enclosure Products, Stego | Thermal Management, Heating
|
Heating element |
: Resistance heater |
|
Housing |
: Plastic, UL 94V-0, black |
|
Connection |
: Silicone cable (halogen-free) 3 x AWG 18 (0.75 mm²), length 3 ft (1 m) |
|
Operating/Storage temperature |
: -40 to +140 °F (-40 to +60 °C) / -40 to +185 °F (-40 to +85 °C) |
|
Protection type/Protection class |
: IP30 / I (earthed) |
