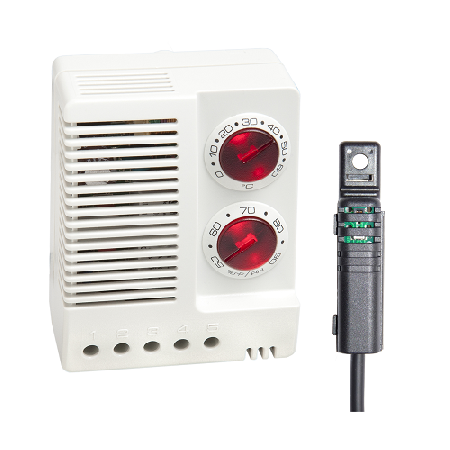

The ETF 012 senses the ambient temperature and relative humidity in an enclosure. Depending on which contact combination is chosen, it then turns on or off a connected device if either the temperature is below or the humidity is above the set point. The integrated LED in each adjustment knob i lit when indicating the active function. The external sensor can be positioned freely anywhere in the enclosure for precise measurements.
Categories: Enclosure Products, Stego | Thermal Management, Regulating
|
Switching difference (Temperature) |
: 2K (±1 K tolerance) at +25 °C (+77 °F), 50 %RH |
|
Reaction time (humidity) |
: Approx. 5 sec |
|
Contact type |
: Change-over contact (relay) |
|
Dimensions |
: 3.0 x 2.4 x 1.7″ (77 x 60 x 43 mm) |
|
Connection |
: 5-pole terminal, clamping torque 0.5 Nm max.: solid/stranded² wire – AWG 14 max. (2.5 mm²) |
|
Housing |
: Plastic, UL 94V-0, light grey |
|
Storage temperature |
: -40 to +140 °F (-40 to +60 °C) |
|
Protection type/Protection class |
: IP20 |
