by AXIS

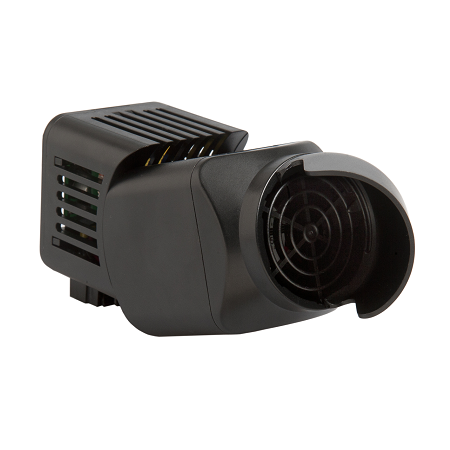

The STEGOJET is a compact, powerful built-in fan. It allows precise cooling of heat sources and the airflow prevents the formation of heat pockets. Its design offers a maximum rotation range with an air output in almost any direction. The dual clip system (two clips at a 90° angle) allows four different positions on a DIN rail, while the hinge in the housing can be moved at a 40° angle. Additionally, the airflow at the air outlet can be directed at a 45° angle and the air duct can be turned 360°.
Categories: Enclosure Products, Stego | Thermal Management, Cooling
|
Axial fans, ball bearing |
: Air flow 16.2 cfm (27.6 m³/h), free flow service life 40,000 h at 140 °F (60 °C) and 90 %RH |
|
Housing |
: Plastic, UL 94V-0, black |
|
Connection |
: 2-pole dual cage clamp for solid wire – AWG 14 (2.5 mm²), stranded wire (w/ wire end ferrule) – AWG 16 (1.5 mm²) |
|
Operating temperature |
:+14 to +140 °F (-10 to +60 °C) / -22 to +158 °F (-30 to +70 °C) |
|
Protection class |
: II (double insulated) / IP20 |
|
Approvals |
: UL File No. E234324, VDE |
