by AXIS

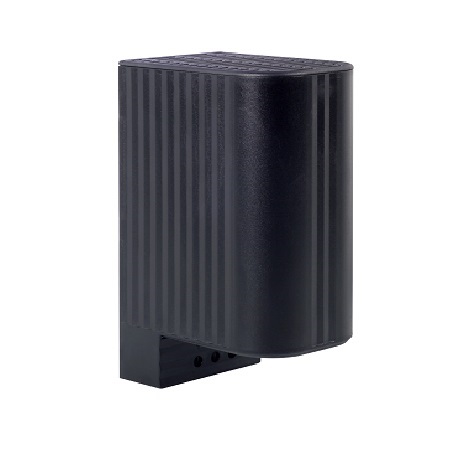

The CS 060 is a touch-safe heater for use in enclosures. The design of the heater utilizes natural convection which results in a circulating current of warm air. The surface temperatures on the accessible side surfaces of the housing are minimized as a result of the heater design. The CS 060 is also available in a version with a plug-in thermostat requiring no additional wiring (CSF 060).
Categories: Enclosure Products, Stego | Thermal Management, Heating
|
Heating element |
: PTC resistor – temperature limiting |
|
Housing |
: Plastic, UL 94V-0, black |
|
Approvals |
: UL File No. E150057, VDE, GOST TR |
|
Connection |
: 4-pole terminal AWG 14 max (2.5 mm²), torque 0.8 Nm max. |
|
Operating/Storage temperature |
: -49 to +158 °F (-45 to +70 °C) |
|
Protection type/Protection class |
: II (double insulated) / IP20 |
