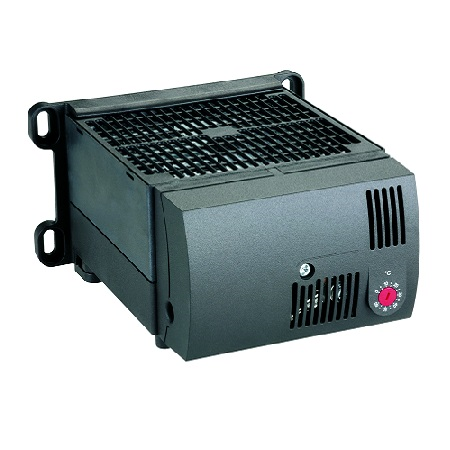

The compact high-performance fan heater DCR 130 prevents the formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The fan heater is available with an integrated electronic thermostat or electronic hygrostat. The model with the thermostat is available with an internal or external sensor. The fan heater with integrated hygrostat is equipped with an external sensor. The external sensor can be positioned freely anywhere in the enclosure for precise measurements of temperature and humidity. The DCR 130 was designed for wall fixing. For fixing on the bottom of the enclosure the fan heater DCR 030 is recommended.
Categories: Enclosure Products, Stego | Thermal Management, Heating
|
Heating element |
: High performance cartridge |
|
Overheat protection |
: With automatic reset and second-tier one shot fuse to protect against overheating in case of fan failure |
|
Axial fans, ball bearing |
: Service life 50,000 h at 77 °F (25 °C) |
|
Housing |
plastic, UL 94V-0, black |
|
Connection |
: 2-pole “Push-In “connection clamp stranded wire1 AWG 16 (1.5 mm²) with strain relief; max. AWG 12 (2.5 mm²) |
|
Operating/Storage temperature |
: -4 to +167 °F (-20 to +75 °C) |
|
Protection type/Protection class |
: II (double insulated) / IP20 |
|
Dimensions |
: 3.9 x 6.6 x 7.0″ (99 x 168 x 179 mm) |
