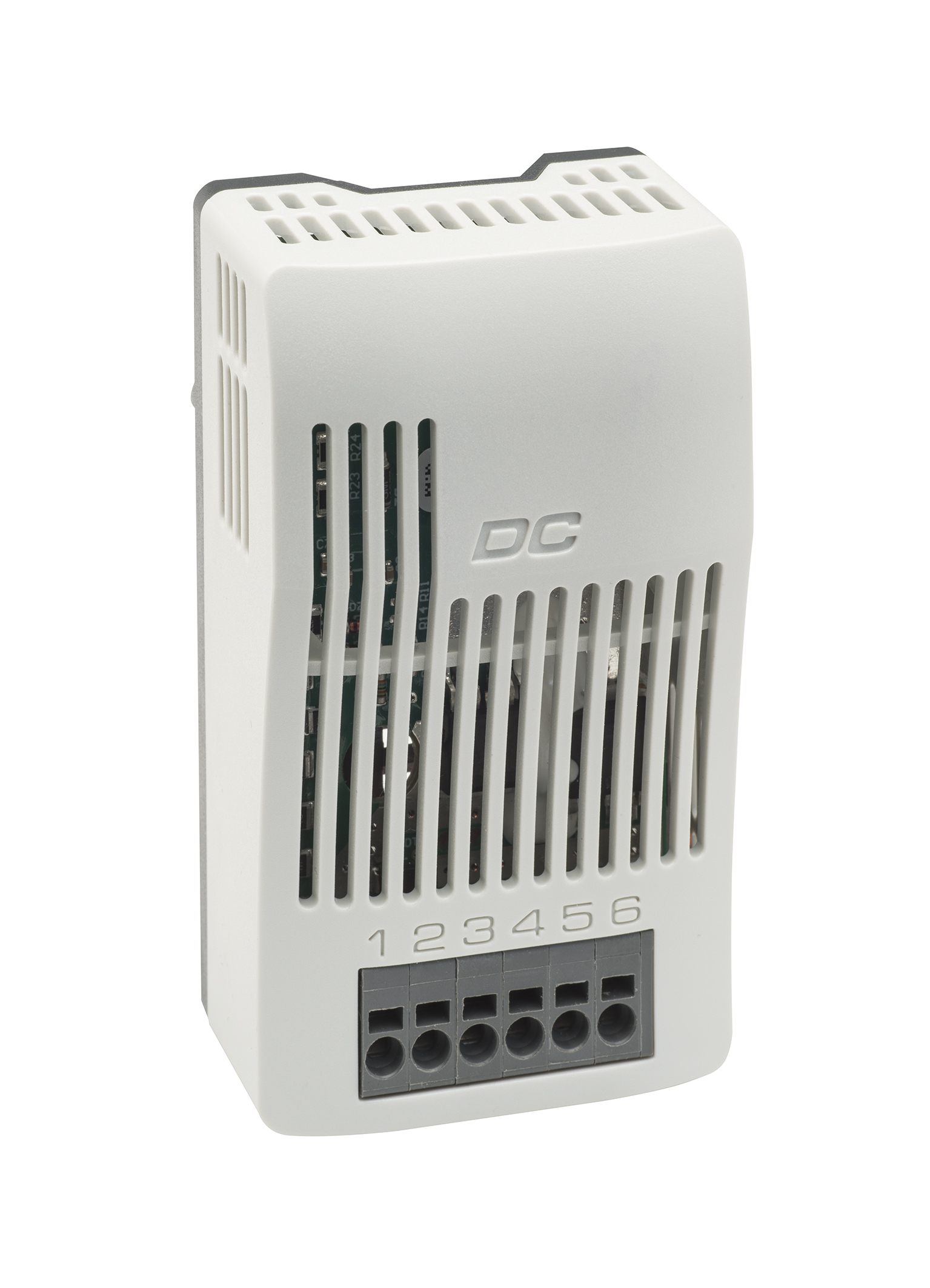

The DCM 010 is used to control DC powered devices with high capacities in control and switch cabinets. It is controlled via an external potential-free contact (thermostat or hygrostat), which is connected between terminal 3 and 4. It must be ensured that the external contact is suitable to switch the required signal current without any problems.
Categories: Enclosure Products, Stego | Thermal Management, Regulating
|
Switching difference (humidity) |
: 4 % RH (±1 % tolerance) at +77 °F (+25 °C), 50 % RH |
|
Control contact – signal current |
: 3 mA at DC 20 V / 4.5 mA at DC 24 V, 14 mA at DC 48 V / 17 mA at DC 56 V |
|
Contact type |
: NO – normally open (MOSFET |
|
Dimensions |
: 3.7 x 2.1 x 1.7″ (93 x 53 x 44 mm) |
|
Connection: |
: 6-pole terminal: stranded wire1 AWG 16 (1.5 mm²); max. AWG 12 (2.5 mm²) |
|
Housing: |
: Plastic, UL 94V-0, grey (bicolor) |
|
Storage temperature: |
: -40 to +176 °F (-40 to +80 °C) |
|
Protection type/Protection class: |
: IP20 |
|
Approvals |
: UL File No. E164102, VDE, EAC |
