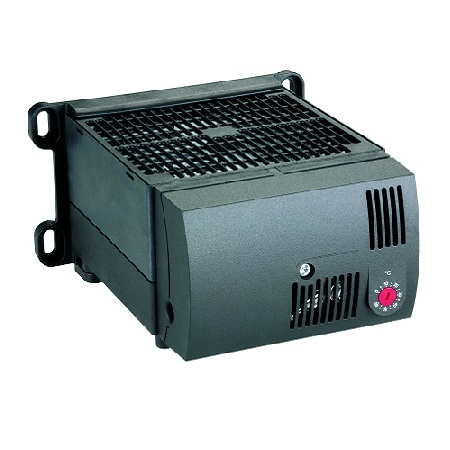

The compact high performance fan heater DCR 030 prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The fan heater is available with an integrated electronic thermostat or integrated electronic hygrostat. The model with thermostat is available with internal or external sensor. The fan heater with integrated hygrostat is equipped with an external sensor. The external sensor can be positioned freely anywhere in the enclosure for precise measurements of temperature and humidity. The DCR 030 was designed as a stationary unit for the bottom of the enclosure. For wall fixing the fan heater DCR 130 is recommended.
Categories: Enclosure Products, Stego | Thermal Management, Heating
|
Heating element |
High performance cartridge |
|
Overheat protection |
With automatic reset and second-tier one shot fuse to protect against overheating in case of fan failure |
|
Axial fans, ball bearing |
: Service life 50,000 h at 77 °F (25 °C) |
|
Housing |
: Plastic, UL 94V-0, black |
|
Connection |
: 2-pole “Push-In “connection clamp stranded wire1 AWG 16 (1.5 mm²) with strain relief; max. AWG 12 (2.5 mm²) |
|
Operating/Storage temperature |
: -4 to +167 °F (-20 to +75 °C) |
|
Protection type/Protection class |
: II (double insulated) / IP20 |
|
Dimensions |
: 3.9 x 5.7 x 6.5″ (100 x 145 x 166 mm) |
