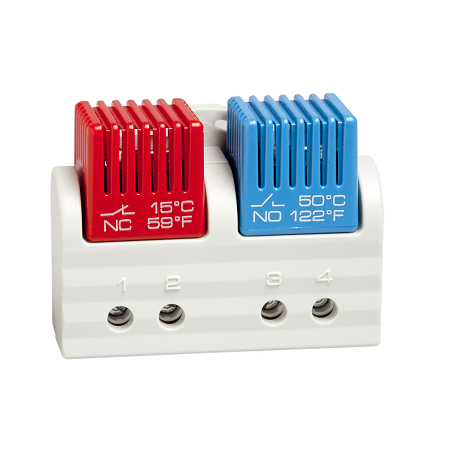

Two thermostats in one housing: Tamperproof (Pre-set) Thermostat NC (normally closed): Thermostat opens on temperature rise (red module housing) – for regulating heaters or for switching signal devices when the temperature has fallen below the minimum value. Tamperproof (Pre-set) Thermostat NO (normally open): Thermostat closes on temperature rise (blue module housing) – for regulating filter fans, heat exchangers, cooling devices, or for switching signal devices when temperature limit has been exceeded.
Categories: Enclosure Products, Stego | Thermal Management, Regulating
|
Sensor element |
: Thermostatic bimetal |
|
Contact type |
: Snap-action contact |
|
Dimensions |
: 1.85 x 2.5 x 1.3” (47 x 63 x 33 mm) |
|
Connection |
: 4-pole terminal, clamping torque 0.8 Nm max.: solid wire – AWG 14 max. (2.5 mm²) stranded wire1 – AWG 16 max. (1.5 mm²) |
|
Housing |
: Plastic, UL 94V-0, light grey |
|
Storage temperature |
: -40 to +176 °F (-40 to +80 °C) / -49 to +176 °F (-45 to +80 °C) |
|
Protection class |
: IP20 |
