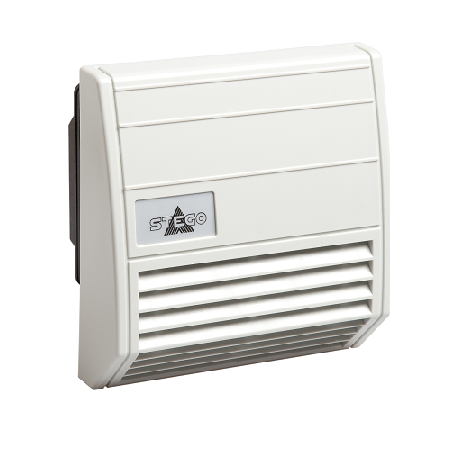

Filter fans are used to provide an optimum climate in enclosures. The interior temperature of an enclosure can be reduced by channeling cooler filtered outside air into the enclosure thus expelling heated internal air. The resulting airflow prevents the formation of localized heat pockets and protects the electronic components from overheating. The plastic used for the hood of this filter fan series is UV light-resistant. These filter fans are intended for indoor use.
Categories: Enclosure Products, Stego | Thermal Management, Cooling
|
Connection |
: 2 wires w/ cage clamps, AWG 14 (2.5 mm²), length 4” (100 mm) |
|
Housing |
: Plastic according to UL 94V-0, light grey; weather and UV light resistant according to UL 746C (f1) |
|
Protection Class |
: I (grounded) / IP55 (according to VDE), UL Type 12 |
|
Operating Temperature |
: +14 to +158 °F (-10 to +70 °C) / -40 to +158 °F (-40 to +70 °C) |
|
Approvals |
: UL File No. E234324 (all), GOST TR |
