by AXIS

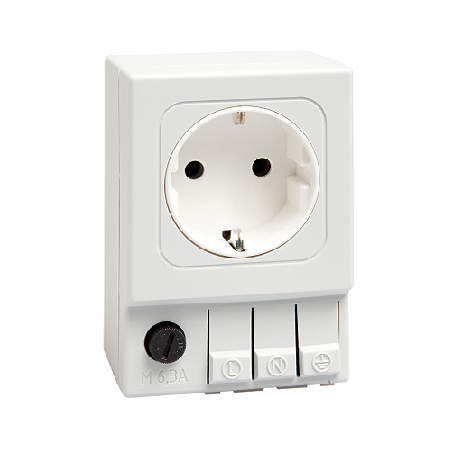

The DIN rail mounted electrical receptacle can be quickly fitted and connected in enclosures allowing the use of auxiliary products such as hand lamps and power tools. The unit is available with and without fuse, and in many world outlet standards.
Categories: Enclosure Products, Stego | Thermal Management, Accessories and Sockets
|
Connection |
: Cage clamps for solid and stranded wire AWG 20-14 (0.5-2.5 mm²) |
|
Housing |
: Plastic according to UL 94V-0, grey/black |
|
Mounting |
: Clip for 35mm DIN rail, EN 60715 |
|
Operating temperature |
: -49 to +158 °F (-45 to 70 °C) |
|
Operating humidity |
: Max. 90 %RH (non-condensing) |
|
Dimensions |
: 3.6 x 2.4 x 1.9” (92 x 62 x 48 mm) |
|
Approvals |
: I (grounded) / IP20 |
