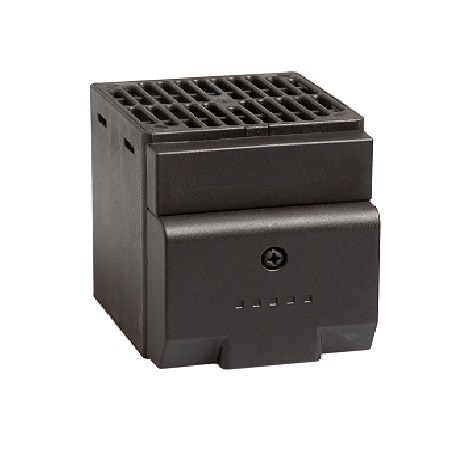

The CSF 028 fan heater prevents the formation of condensation and provides evenly distributed interior air temperature in enclosures. The touch-safe plastic housing and the small size makes it ideal for use in enclosures with a high packing density. The heater is equipped with a fixed set point thermostat and is easily wired via external pressure clamps. Two different mounting options are available – DIN rail or screw tabs. The robust screw tab mounting is particularly suitable for applications with high vibration.
Categories: Enclosure Products, Stego | Thermal Management, Heating
|
Heating element |
: PTC resistor – temperature limiting |
|
Overheat protection |
: Built-in temperature limiter |
|
Axial fan, ball bearing |
: Service life 40,000 h at 104 °F (+40 °C) |
|
Housing |
: Plastic, UL 94V-0, black |
|
Connection |
: 2-pole dual pressure clamp for solid wire AWG 14 max. (2.5mm²), stranded wire (with wire end ferrule) AWG 16 max. (1.5 mm²) |
|
Operating/Storage Temperature |
: -40 to +158 °F (-40 to +70 °C) / -49 to +158 °F (-45 to +70 °C) |
|
Protection type/Protection class |
: II (double insulated) / IP20 |
