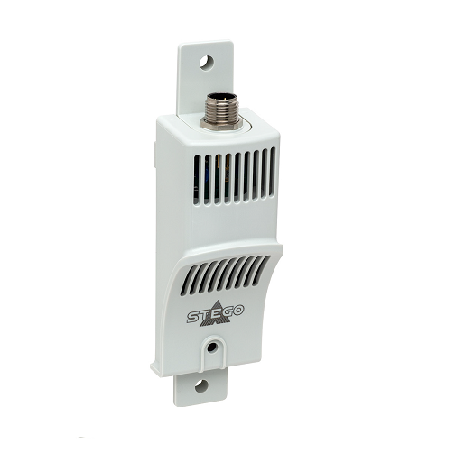

The compact Smart Sensor CSS 014 electronically records temperature and humidity and converts the measured data into a standardized analog 4-20 mA or a digital IO-Link signal. The converted value signals can be utilized or further processed by a control or monitoring unit, e.g. a PLC control. The Smart Sensor is suitable for installation inside and outside the enclosure, even in harsh environmental conditions as can be found in the wind power industry: in shielded outdoor areas and exposed to vibrations.
Categories: Enclosure Products, Stego | Thermal Management, Monitoring
|
Max. reaction time |
: 3 min. |
|
Load resistance |
: ≤ 500 Ω (4-20 mA only) |
|
Dimensions |
: 140 x 40 x 38 mm |
|
Connection |
: M12 round plug connector, IEC 61076-2-101, 4-pin, A-coded, shielded |
|
Housing |
: Plastic according to UL94 V-0, light grey |
|
Storage temperature |
: -40 to +85 °C (-40 to +185 °F) |
|
Protection class |
: IP20 (sensor only IP57) / III (SELV) |
|
Approvals |
: VDE and UL File No. E500143 (acc. to IEC 61010-1/DIN EN 61010-1) |
